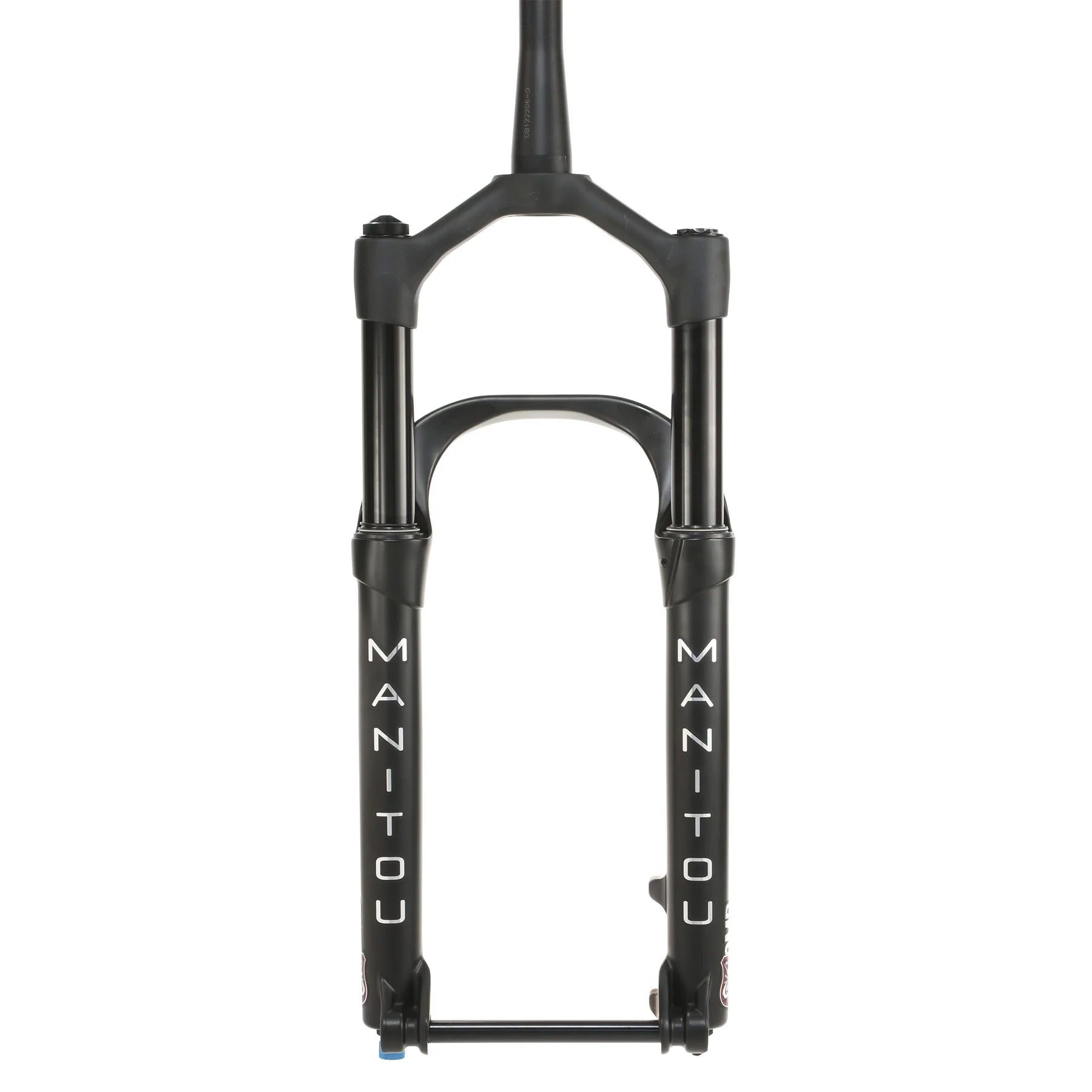

Mastodon Comp - Gen 3 - 100mm travel

The Mastodon is not a modified or repurposed trail fork compatible with large tire dimensions, but rather it is a fatbike fork made to improve any ride regardless of how low or high the numbers on the thermometer read. To create such a dynamic fork required all-environment and all-temperature performance testing that took the R+D staff to some of the most inhospitable testing environments in the world. To earn its place within the Manitou family, the Mastodon passed performance and reliability testing in both real world and lab scenarios at temperatures as low as -40 degrees. The Dorado Air, seals, lubricants, and all other internals are proven for all-weather performance, no matter how extreme on either end of the temperature spectrum.

Fork is set up with 100mm travel. This is internally adjustable by the rider in 10mm increments from 80mm to 140mm.

•Wheel Size: 26/27.5" Fat
•Weight: 2254g
•Offset: 44mm
•Axle To Crown: 80mm travel - 504mm, 100mm travel - 524mm, 120mm travel - 544mm, 140mm travel - 564mm
•Travel: 80-140mm internally adjustable in 10mm increments
•Spring: Expert Air w/ IVA
•Compression: ABS+
•Rebound Damping: in-leg adjustable TPC
•Adjustments: Air, Air Volume, Rebound, Compression
•Steerer: 1.5" Tapered
•Crown: Forged Aluminum, Hollow Bore
•Leg Diameter: 34mm
•Leg Material: 6000- Series Straight Wall Aluminum
•Brake Post Mount: 180mm (203mm Max)
•Axle: 15mm x 150mm Hexlock SL
•Max Tire: Size 26x5.05"/27.5x4.5"
•E-pac: Yes
