HONEY BADGER FRAME

Specifications

• Proper Drop‑Bar MTB Geometry (PDBMTBG)
• Designed for 100–120 mm suspension forks
• 148×12 mm Boost rear spacing (MTB cranks only)
• 73 mm T47 External Cup Bottom Bracket
• Internal cable routing
• Tire clearance: 29×2.0–2.6" or 27.5×2.25–3.0"
• Max chainring size: 46T (1x only)
• Three triple-boss mounts + rack mounts
• Flat-mount brakes: 160 mm (180 mm with 20 mm adapter)
• 31.6 mm seatpost / 34.9 mm clamp (Wolf Tooth clamp included)

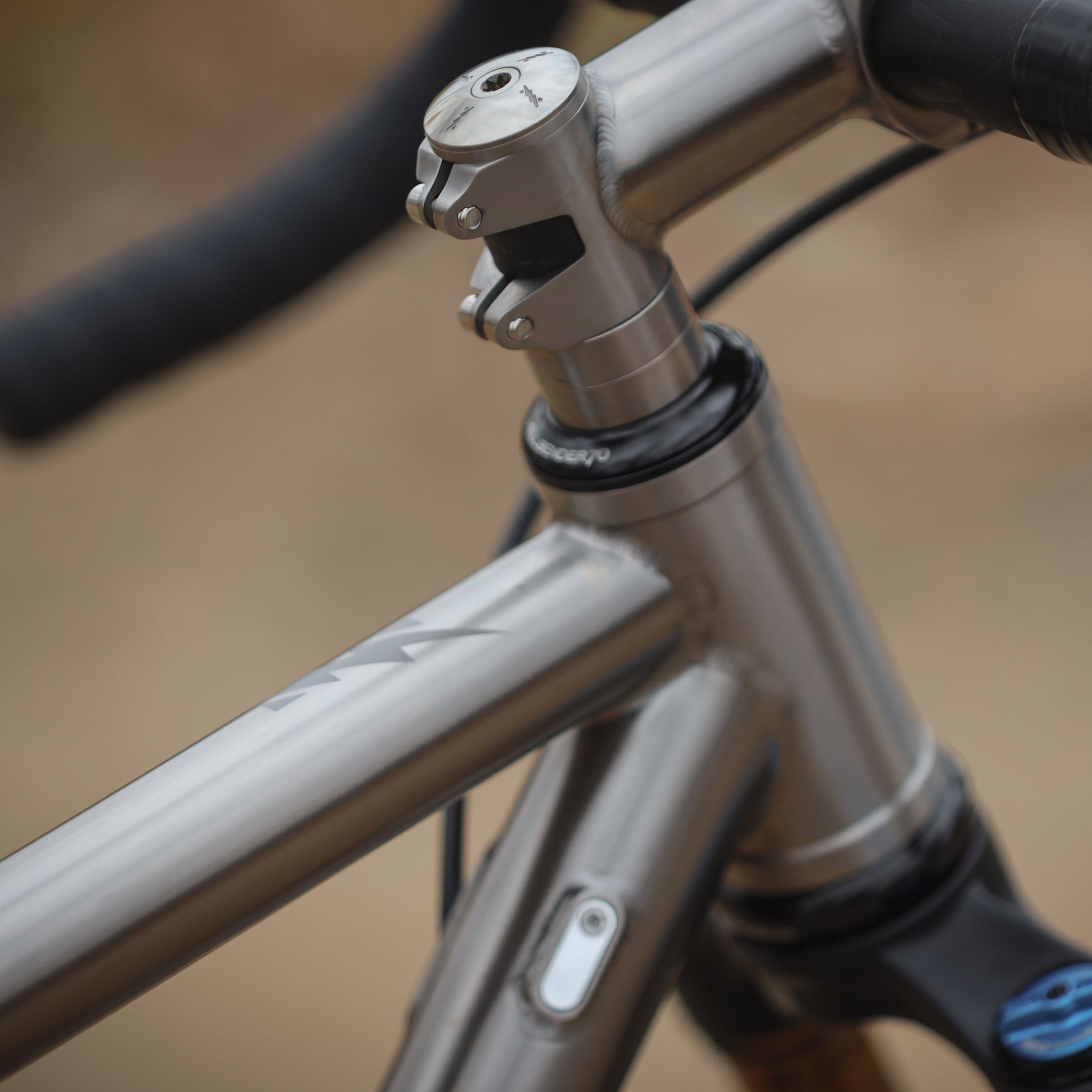

• 44 mm straight head tube — ZS44 upper / EC44 lower headset
• 3AL-2.5V double-butted titanium tubeset
• 6AL-4V billet head tube, bottom bracket, dropouts, & chainstay plate

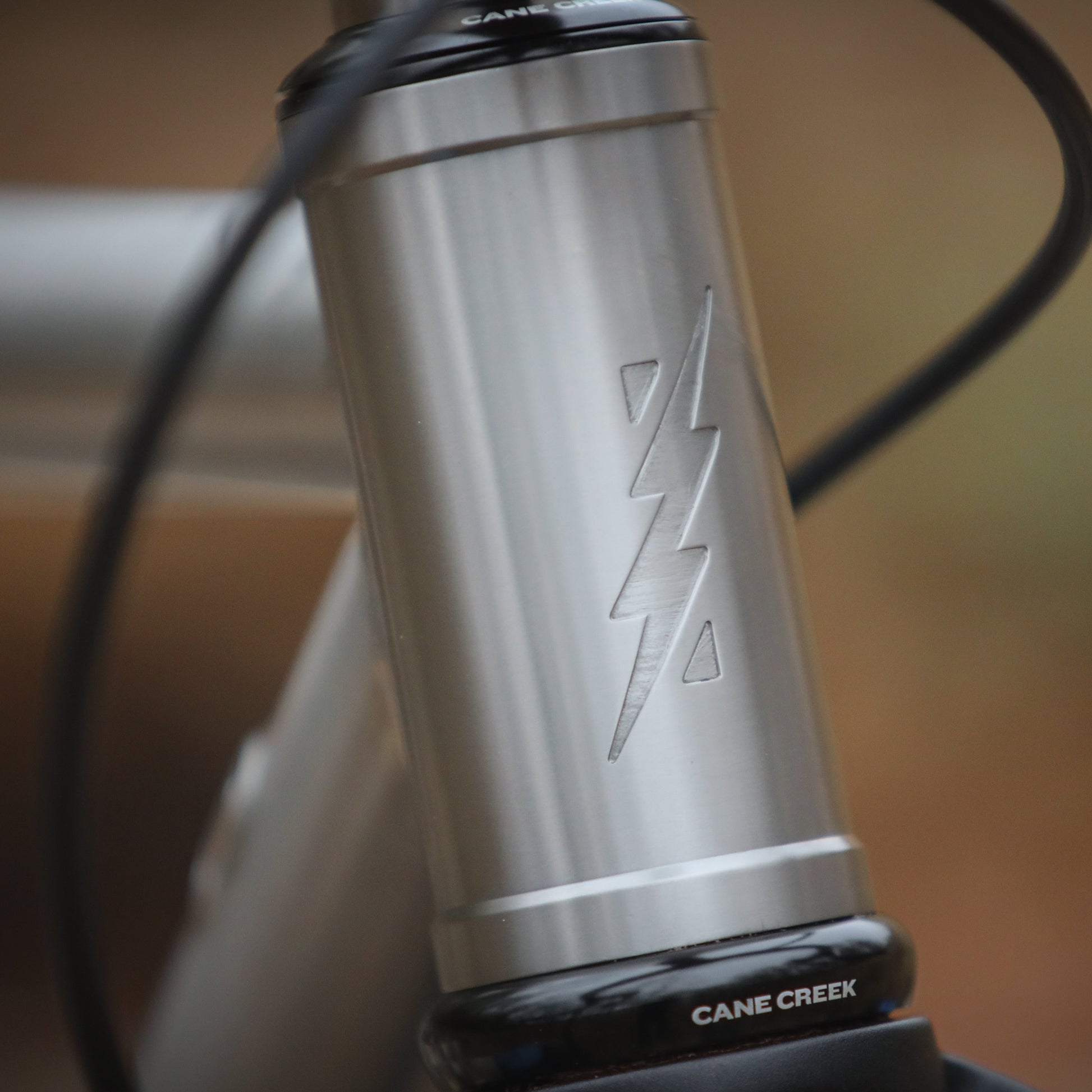

• Engraved BBCo. Bolt logo on head tube & chainstay plate

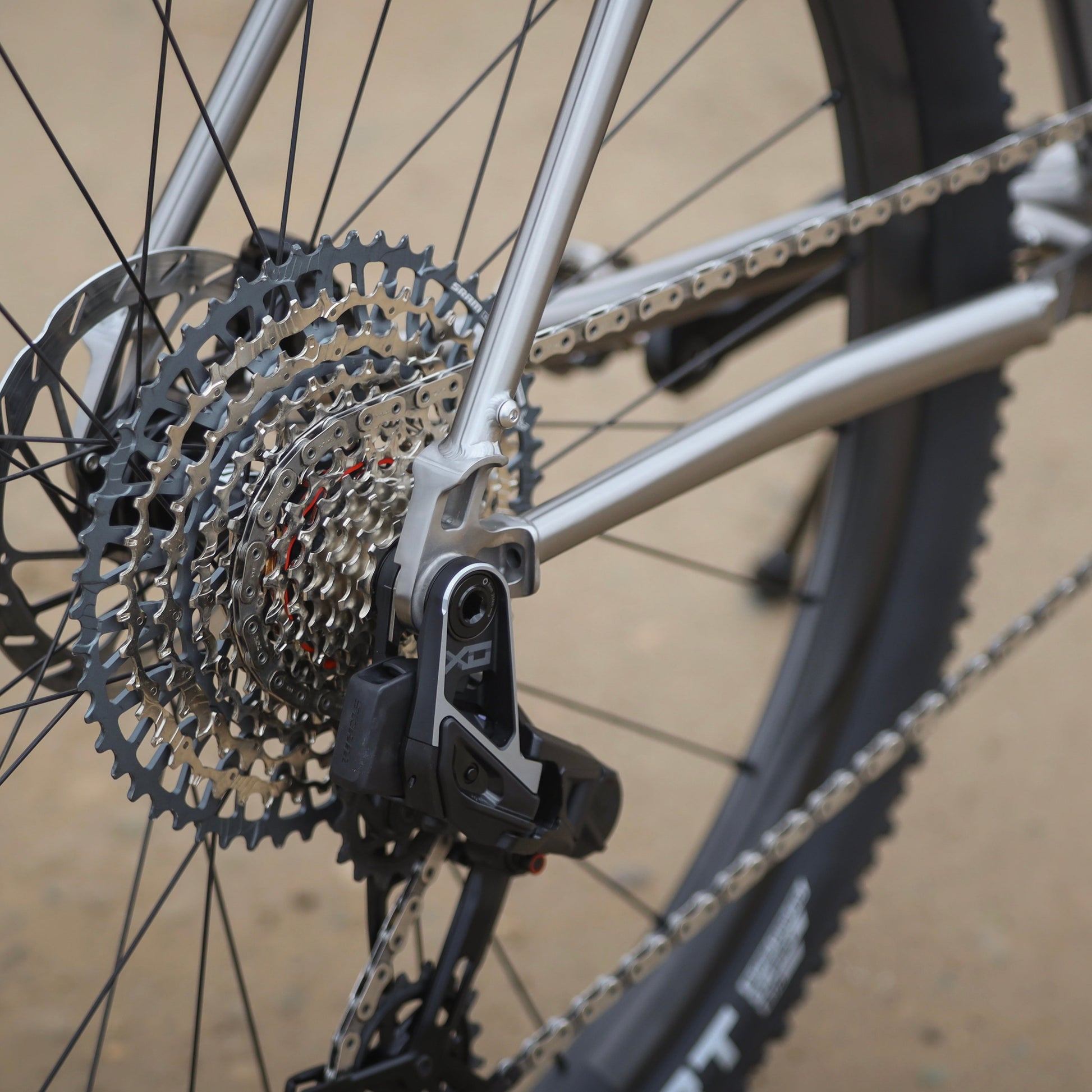

• Universal Derailleur Hanger (UDH)
• Dropper post routing

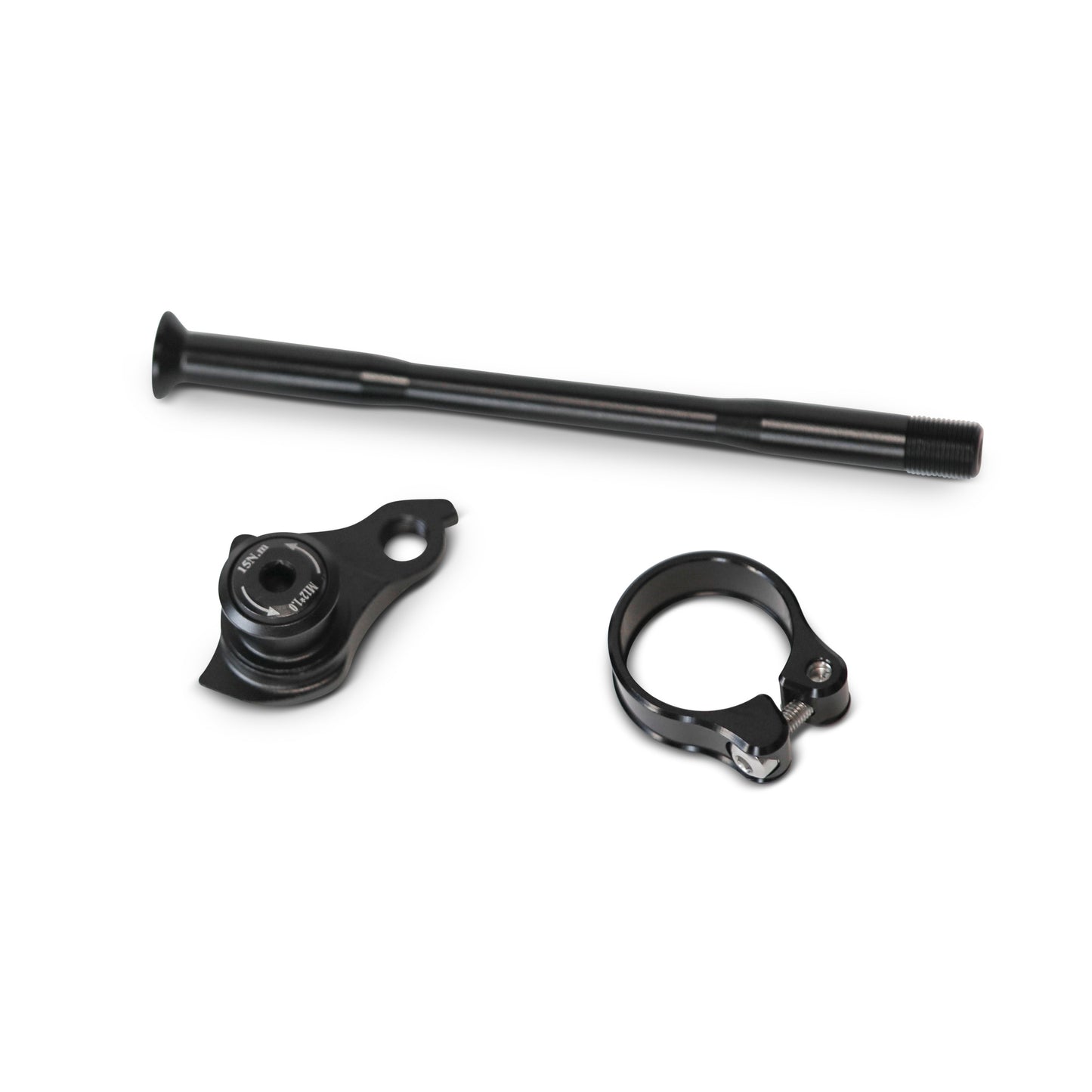

• includes axle, seatpost clamp, and UDH hanger

*We suggest you use a Chris King T47 30x BB. They allow for the most cable housing clearance and they are awesome! Be sure to get the correct fit kit for your crankset. We offer King BB’s and Fit Kits in our store.

*You will need a Post to Flat mount adaptor in order to use a flat mount brake caliper with a suspension fork. We have these available in our store. Please note that these adapters do not work with Fox Step Cast forks. For these forks you will need to use a post mount caliper.

Click here for GEOMETRY
