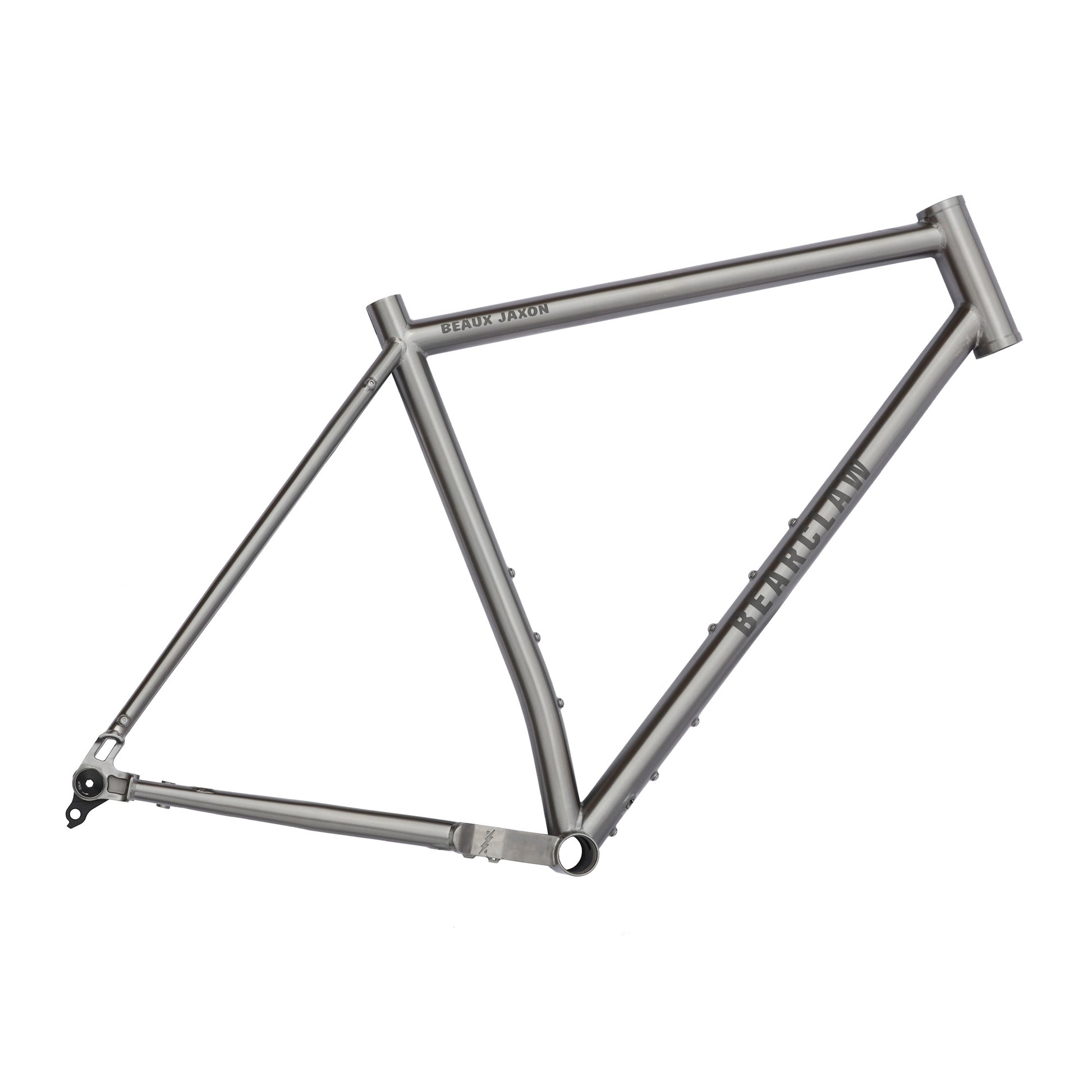

BEAUX JAXON FRAME

New updated UDH (Universal Derailleur Hanger) design

• 148x12mm Boost thru-axle frame (axle included)
• Pair with our 420mm axle to crown carbon or Ti boost 110x15 fork.
• Fits up to 27.5×3 or 29×2.6 tires (recommended smallest tire 700x45c)
• 46T MAXIMUM 1x Chainring clearance
• 3 triple boss mounts on the frame
• 2 triple boss mounts on the Ramhorn fork
• Rack mounts
• Flat mount brake
• 31.6 seatpost / 34.9 seatpost clamp (includes Wolf Tooth clamp)
• Ultradistance Gravel Friendly Geometry (UGFG)
• 73mm BSA Standard Threaded Bottom Bracket
• ZS44 | EC44 headset
• Internal brake and rear derailleur routing
• 3AL-2.5V double-butted titanium frame
• 6AL-4V billet head tube, bb, dropouts, BBCo. derailleur hanger, and chainstay plate
• Engraved BBCo. Bolt logo on headtube and chainstay plate

GEOMETRY & SIZING
