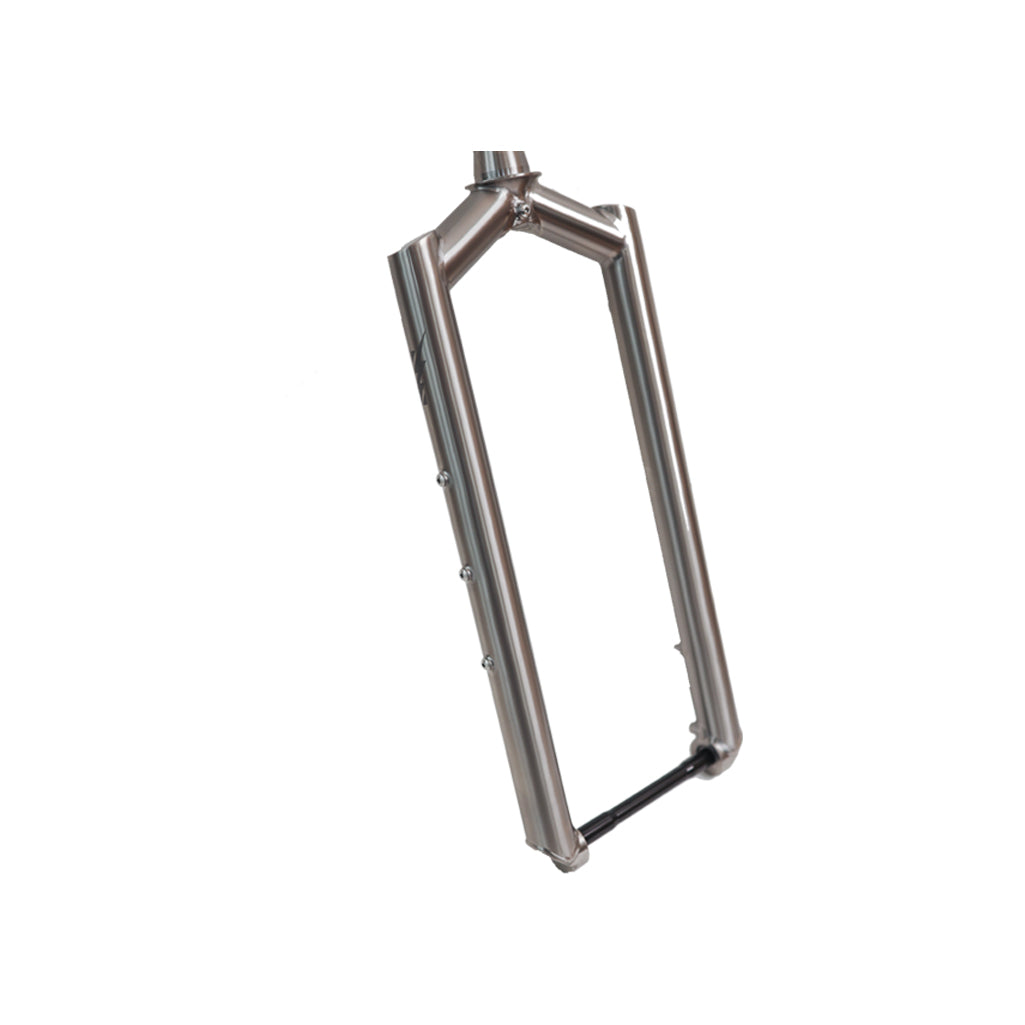

Titanium 150 Fat Fork

Made to Fit Big Tires for Big Adventures

  • Available as 150x15mm
  • Flat mount
  • 468mm Axle To Crown
  • 51mm offset
  • 3 M5 mounts on each fork leg
  • 1 Front M5 mount
  • Max Load (rider+bike+gear)240lbs/109kg
  • Max 3-mount Load Weight: 10lbs/4.5kg per leg (20lbs total)
  • Internal cable routing
  • (Full spec below)

Based on the success of our ti gravel forks, it was only natural that we made the Titanium 150 Fat Fork to accommodate even wider tires for fat bikes. Among those in the Bearclaw fleet are TŌWMAK, a drop-bar fat bike with gravel-centric geometry, and Frank, a ferocious ti fat bike made for riding anywhere. Read More

Buy the official BBCo. 150 Fat Fork on our online store. Or for your other non-fat bikes, check out our Ti 100 Fork, Ti 110 Boost Fork and RAMHORN Carbon Gravel Fork.

SPECS

$690
STEERER TYPE
1 1/2" Taper
STEERER LENGTH
300mm
FORK LENGTH
468mm
MATERIAL
Titanium
RAKE
51mm
AXLE
15mm x 150mm Thru Axle
GROWN RACE
40mm
BRAKE TYPE
Flat Mount w/ Internal routing
MAX ROTOR
160mm
CAGE MOUNTS
Triple Boss x 2
MAX TIRE
27.5 x 5 / 26 x 5
WEIGHT
920g
LOAD WEIGHT
240lbs / 109kg
AERODYNAMIC
YES
48
51
52.5
54
55.5
57
58.5
60
WIP
